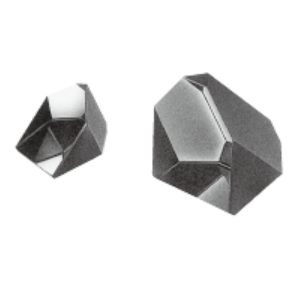

TS-0730P

Prism by Sugitoh
Request Quote

Note: Your Quotation Request will be directed to Sugitoh.

Product Specifications

View similar products

Product Details

  • Part Number
    TS-0730P
  • Manufacturer
    Sugitoh
  • Description
    587.6 nm Roof Prisms with 11 mm Size

General Parameters

  • Prism Type
    Right Angle Prisms, Roof Prisms
  • Prism Shape
    Roof, Triangular
  • Substrate/Material
    BK7
  • Dimension
    11 mm
  • Diameter Tolerance
    ±0.2 mm
  • Design Wavelength
    587.6 nm
  • Angle Tolerance
    ±3 arcmin
  • Refractive index
    1.51680/nd, 1.51872/ne
  • Surface Flatness
    λ
  • Surface Quality
    60-40 scratch-dig
  • Applications
    Binoculars, single-lens reflex camera
  • RoHs
    Yes
  • Note
    Pyramid Error: ±3 arcmin
Click to view more product details on manufacturer's website
Request a Quote
