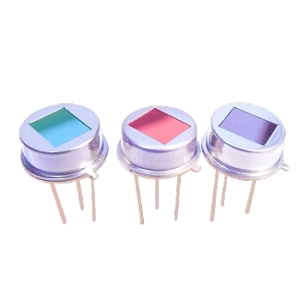

AFBR-S6PY2341

Pyroelectric Detector by Broadcom
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Broadcom.

The AFBR-S6PY2341 from Broadcom is a Pyroelectric Detector with Field of View(FOV) 100 Degree, Supply Voltage 2.7 to 8 V, Voltage Responsivity 150000 V/W, Feedback Resistor 10 GOhms. More details for AFBR-S6PY2341 can be seen below.

Product Specifications

Product Details

  • Part Number
    AFBR-S6PY2341
  • Manufacturer
    Broadcom
  • Description
    TO-39 150000 V/W Current Mode Infrared Pyroelectric Detector

Applications

  • Applications
    NDIR Gas Detection, Flame Detection, NDIR Pellistor and Electrochemical Replacements, Automotive Gas Analysis, Medical Gas Analysis, Anaesthesia, Fluid Analysis, Food Safety, THz Detection, Energy Measurement, Miniaturized Designs

General Parameters

  • Operation Mode
    Current Mode
  • Aperture Size
    5.2 x 4.2 mm2
  • Channels
    Single Channel
  • Field of View(FOV)
    100 Degree
  • Detectivity
    3.5 x 108 cmvHz/W
  • Supply Voltage
    2.7 to 8 V
  • Package
    TO39
  • Voltage Responsivity
    150000 V/W
  • Element Size
    1000 µm x 1000 µm
  • Integrated Components
    Op-Amp
  • Noise Density
    70 µVvHZ
  • Package Type
    TO-Can
  • Spectral Band
    Infrared
  • Spectral Range
    4.55 µm (cut-on), 4.73 µm (cut-off)
  • Thermal Time Constant
    12 ms
  • Feedback Resistor
    10 GOhms

Environmental Conditions

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 110 Degree C
