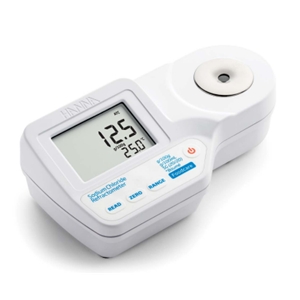

HI96821

Refractometer by Hanna Instruments
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hanna Instruments.

The HI96821 from Hanna Instruments is a Refractometer with Sample Volume 100 µL, Automatic Temperature Compensation 10 to 40 Degree C. More details for HI96821 can be seen below.

Product Specifications

Product Details

  • Part Number
    HI96821
  • Manufacturer
    Hanna Instruments
  • Description
    `

General Parameters

  • Type
    Digital Refractometer
  • Configuration
    Portable
  • Measurement Scales
    Baumé (°Bé), Sodium Chloride, Specific Gravity (S.G.)
  • Sample Volume
    100 µL
  • Automatic Temperature Compensation
    10 to 40 Degree C
  • Battery Life
    9 V / 5000 readings
  • Measurement Range
    1.000 to 1.216 (Specific Gravity), 0 to 28 g/100 g 0 to 34 g/100 mL 0 to 26 Degree Baume (Sodium Chloride)
  • Light Source
    Yellow LED
  • Correction Temperature Range
    0 to 80 Degree C
  • Housing Material
    ABS
  • IP Rating
    IP65
  • Measurement Accuracy
    ±0.002 (Specific Gravity), ±0.2 g/100 g ±0.2 g/100 mL ±0.2 Degree Baume (Sodium Chloride)
  • Measurement Resolution
    0.001 (Specific Gravity), 0.1 g/100 g 0.1 g/100 mL 0.1 Degree Baume (Sodium Chloride)
  • Measurement Time
    1.5 s
  • Sample Cell
    Stainless steel ring and flint glass prism
  • Temperature Accuracy
    ±0.3 Degree C
  • Temperature Resolution
    0.1 Degree C

Physical Properties

  • Dimensions
    192 x 102 x 69 mm
  • Weight
    350 g
