A1ER-M

Scientific & Industrial Camera by Alkeria
79 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Alkeria.

The A1ER-M from Alkeria is a Scientific & Industrial Camera with Mega Pixels 1.3 MP, Frame Rate 62 fps. More details for A1ER-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    A1ER-M
  • Manufacturer
    Alkeria
  • Description

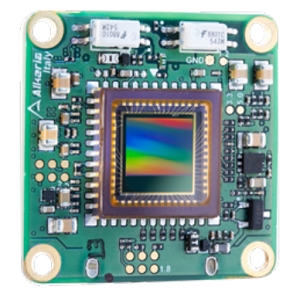

    1.3 MP Board Camera with a frame rate of 62 fps

Applications

  • Application
    Medical imaging, Pick-and-place applications, 3D scan
  • Application Industry
    Medical and Healthcare, Scientific and Research, Outdoor and Environmental Monitoring

Connections & Interface

  • Data Interface
    USB 3.1 Gen 1

General Parameters

  • Camera Type
    Board Cameras, Area Scan Cameras
  • Mega Pixels
    1.3 MP
  • Resolution
    1288(H) x 1032(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    62 fps
  • Pixel Size(H x V)
    5.3 µm x 5.3 µm
  • Exposure Time :
    16 µs to 0.99 s
  • Sensor Format
    1/1.8 Inches
  • Sensor Configurations
    B/W, Near Infrared, Monochrome
  • Trigger Mode
    External trigger, Software trigger
  • Compliances
    CE, RoHS, FCCv/IC
  • ADC Resolution
    10 bit
  • Compatible System
    Windows, Linux
  • Chrome
    B/W, Near Infrared, Monochrome
  • Lens Mount
    C-Mount, S-Mount
  • Power Consumption
    <1.3 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Teledyne e2v
  • Sensor Model Number
    EV76C661

Physical Properties

  • Camera Housing
    Board Level
  • Dimension
    26.4 x 26.4 x 7.8 mm (L x W x D)
  • Weight
    <5 g

Temperature

  • Operating Temperature
    0 to 50 Degree C (on mount), 0 to 60 Degree C (at board)
