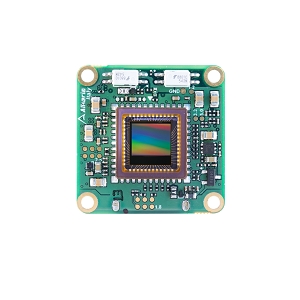

ARIA A2ES-M

Scientific & Industrial Camera by Alkeria
79 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Alkeria.

The ARIA A2ES-M from Alkeria is a Scientific & Industrial Camera with Mega Pixels 1.92 MP, Frame Rate 62 fps, Bit Depth 10 bit. More details for ARIA A2ES-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ARIA A2ES-M
  • Manufacturer
    Alkeria
  • Description
    USB3 Camera

Applications

  • Application
    Medical Imaging, 3D Scanning, Automotive Industry, Food & Beverage, Defense, Security & Aerospace, Electronics & Solar, Traffic, Rail & Transport, Sports, Entertainment & Broadcast
  • Application Industry
    Medical and Healthcare, Scientific and Research, Outdoor and Environmental Monitoring, Industrial Inspection and Automation, Consumer Electronics, Security and Surveillance, Traffic Management and Intelligent Transportation Systems (ITS), Entertainment and Media

Connections & Interface

  • Data Interface
    USB
  • Peripheral Communications
    2 I/O, LVTTL levels (configurable GPIO or RS232 or direct encoder interface), 1 in (isolated), 1 out (isolated)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.92 MP
  • Resolution
    1600 x 1200
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    62 fps
  • Pixel Size(H x V)
    4.5 µm x 4.5 µm
  • Exposure Time :
    16 µs ÷ 1 s (global shutter)
  • Sensor Format
    1 to 1.8 Inches
  • Bit Depth
    10 bit
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Pixels
    1.92 MP
  • Trigger Mode
    External trigger, software trigger
  • ADC Resolution
    10 bit
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount, S-Mount
  • Power Consumption
    < 1, 2 W, powered by USB3 interface
  • RoHs
    Yes
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    EV76C570

Physical Properties

  • Dimension
    26.4 x 26.4 x 7.8 mm (without lens adapter)
  • Weight
    <5 g (without lens adapter)

Temperature

  • Operating Temperature
    0 to 60 Degree C
