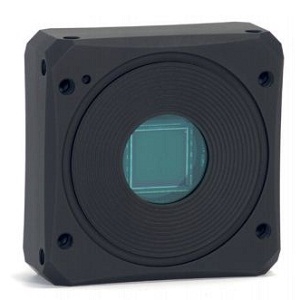

CELERA C4K-M

Scientific & Industrial Camera by Alkeria
79 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Alkeria.

The CELERA C4K-M from Alkeria is a Scientific & Industrial Camera with Mega Pixels 4.19 MP, Frame Rate 179 fps, Bit Depth 10 Bit, 12 Bit. More details for CELERA C4K-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CELERA C4K-M
  • Manufacturer
    Alkeria
  • Description
    Dual-USB3 Camera

Applications

  • Application
    Web And Print Inspection, Medical Imaging, Pharmaceutical, 3D Scanning, Automotive Industry, Food & Beverage, Defense, Security & Aerospace, Electronics & Solar, Traffic, Rail & Transport, Sports, Entertainment & Broadcast
  • Application Industry
    Medical and Healthcare, Scientific and Research, Outdoor and Environmental Monitoring, Industrial Inspection and Automation, Traffic Management and Intelligent Transportation Systems (ITS), Entertainment and Media

Connections & Interface

  • Data Interface
    USB
  • Peripheral Communications
    2 in (direct encoder interface), 2 out and 1 I/O (RS422, RS644 LVDS, LVTTL)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    4.19 MP
  • Resolution
    2048(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    179 fps
  • Pixel Size(H x V)
    5.5 µm x 5.5 µm
  • Exposure Time :
    21.5 µs ÷ 50 s (global shutter)
  • Sensor Format
    1 Inches
  • Bit Depth
    10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Pixel Binning
    2 x 2
  • Pixels
    4.19 MP
  • Trigger Mode
    External trigger, software trigger
  • ADC Resolution
    10 to 12 bit
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount, F-Mount
  • Power Consumption
    < 3 W, powered by USB3 interface
  • Readout Rate
    Normal, 8 AOI, binning
  • RoHs
    Yes
  • Sensor Manufacturer
    CMOSIS
  • Sensor Model Number
    CMV4000

Physical Properties

  • Dimension
    56 x 56 x 30.53 mm
  • Weight
    <150 g

Temperature

  • Operating Temperature
    0 to 60 Degree C
