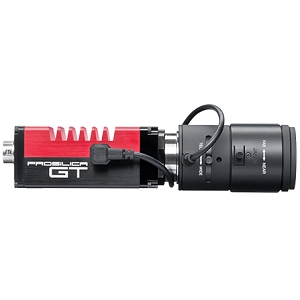

Prosilica GT 2000 NIR

Scientific & Industrial Camera by Allied Vision
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Allied Vision.

The Prosilica GT 2000 NIR from Allied Vision is a Scientific & Industrial Camera with Mega Pixels 2.2 MP, Frame Rate 53.7 fps, Bit Depth 8 Bit, 12 Bit. More details for Prosilica GT 2000 NIR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Prosilica GT 2000 NIR
  • Manufacturer
    Allied Vision

Applications

  • Application
    Outdoor Imaging, Traffic Imaging And Intelligent Traffic Systems, Public Security And Surveillance, Industrial Inspection, Machine Vision, Microscopy, Medical And Healthcare
  • Application Industry
    Outdoor and Environmental Monitoring, Traffic Management and Intelligent Transportation Systems (ITS), Security and Surveillance, Industrial Inspection and Automation, Consumer Electronics, Scientific and Research, Medical and Healthcare

Connections & Interface

  • Data Interface
    Power over Ethernet (PoE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.2 MP
  • Resolution
    2048(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    53.7 fps
  • Pixel Size(H x V)
    5.5 x 5.5 µm(H x V)
  • Sensor Format
    2/3 Inches
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    NIR
  • Detection Wavelength Range
    Near IR
  • Cooling Method
    Uncooled
  • Pixels
    2.2 MP
  • Compliances
    CE, WEEE, FCC Class B
  • ADC Resolution
    12 bit
  • Chrome
    Near-Infrared
  • Lens Mount
    C-Mount
  • Voltage(DC)
    7 to 25 VDC, PoE
  • Power Supply
    7 to 25 VDC, PoE
  • Power Consumption
    3.4 W @ 12 VDC, 4.2 W (PoE)
  • RoHs
    Yes
  • Sensor Model Number
    CMV2000

Physical Properties

  • Dimension
    86 x 53.3 x 33mm
  • Weight
    210 g

Temperature

  • Operating Temperature
    -20 to 65 Degree C
