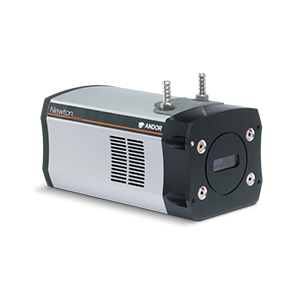

DU940P

Scientific & Industrial Camera by Andor Technology
19 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Andor Technology.

The DU940P from Andor Technology is a Scientific & Industrial Camera with Mega Pixels 1 MP, Bit Depth 16 Bit. More details for DU940P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DU940P
  • Manufacturer
    Andor Technology

Applications

  • Application
    Raman, Fluorescence, Luminescence, Photoluminescence, Absorption/transmission/reflection, Micro-spectroscopy, Non-linear Spectroscopy (SFG/SHG)
  • Application Industry
    Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1 MP
  • Resolution
    2048(H) x 512(V)
  • Sensor Type
    CCD
  • Pixel Size(H x V)
    13.5 x 13.5 µm
  • Active Image Area
    Sensor Size: 27.6 x 6.9 mm
  • Bit Depth
    16 Bit
  • Dark Current
    0.0001, 0.0002 e-/pixel/sec
  • Linearity
    Better than 99%
  • Detector Sensitivity
    1 to 16 e-/count
  • Read Noise
    2.5 e
  • Detection Wavelength Range
    Near IR, Ultraviolet, Visible
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Gain Register Well Depth
    150,000 e-, 600,000 e
  • Operating Humidity
    70% (non-condensing)
  • Pixels
    1 MP
  • Vertical Clock Speed
    2 to 179 µs
  • ADC Resolution
    16 bit
  • Compatible System
    Windows (XP, Vista, 7 and 8) or Linux
  • Chrome
    Ultraviolet, Visible, Near-Infrared
  • Power Supply
    100 - 240 VAC, 50 - 60 Hz

Physical Properties

  • Weight
    2.7 kg [5 lb15 oz]

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -25 to 50 Degree C
