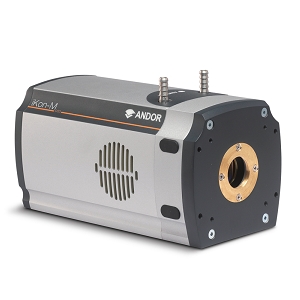

iKon-M 912

Scientific & Industrial Camera by Andor Technology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Andor Technology.

The iKon-M 912 from Andor Technology is a Scientific & Industrial Camera with Mega Pixels 0.3 MP, Frame Rate 14.4 fps, Bit Depth 16 Bit. More details for iKon-M 912 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    iKon-M 912
  • Manufacturer
    Andor Technology

Applications

  • Application
    Astronomy, Bioluminescence/chemiluminescence, Absorption Measurement, Photon Emission Microscopy, Hyper-spectral Imaging, Laser Induced Fluorescence (LIF), Brewster Angle Microscopy (BAM)
  • Application Industry
    Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Microscope Cameras, Area Scan Cameras
  • Mega Pixels
    0.3 MP
  • Resolution
    512(H) x 512(V)
  • Sensor Type
    CCD
  • Shutter Type
    Electronic Shutter, Mechanical Shutter
  • Frame Rate
    14.4 fps
  • Pixel Size(H x V)
    24 µm x 24 µm
  • Active Image Area
    Sensor Size: 12.3 x 12.3 mm
  • Bit Depth
    16 Bit
  • Dark Current
    0.0011 e-/pixel/sec
  • Linearity
    Better than 99%
  • Read Noise
    3 e-
  • Detection Wavelength Range
    Near IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Gain Register Well Depth
    300,000 e-
  • Operating Humidity
    70% (non-condensing)
  • Pixels
    0.3 MP
  • ADC Resolution
    16 bit
  • Compatible System
    Windows (XP, Vista, 7 and 8) or Linux
  • Chrome
    Near-Infrared
  • Lens Mount
    C-Mount
  • Power Supply
    100 - 240 VAC, 50 - 60 Hz
  • Readout Rate
    5 MHz

Physical Properties

  • Weight
    2.2 kg [4 lb 13 oz]

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -25 to 50 Degree C

Technical Documents
Click to view more product details on manufacturer's website
