iKon-XL 231

Scientific & Industrial Camera by Andor Technology
19 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Andor Technology.

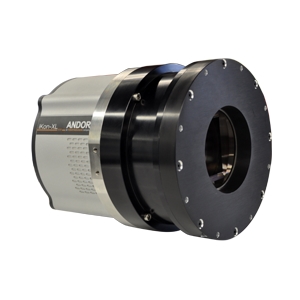

The iKon-XL 231 from Andor Technology is a Scientific & Industrial Camera with Mega Pixels 16.8 MP, Quantum Efficiency(QE) 87%, 95%, Bit Depth 16 Bit, 18 Bit. More details for iKon-XL 231 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    iKon-XL 231
  • Manufacturer
    Andor Technology

Applications

  • Application
    Exoplanet Studies, Asteroid Observations, Photometry, X-Ray Astronomy, Astronomy
  • Application Industry
    Outdoor and Environmental Monitoring, Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    16.8 MP
  • Resolution
    4096(H) x 4112(V)
  • Sensor Type
    CCD
  • Pixel Size(H x V)
    15 x 15 µm
  • Quantum Efficiency(QE)
    87%, 95%
  • Active Image Area
    Sensor Size: 61.4 x 61.7 mm
  • Dynamic Range
    166,700: 1
  • Bit Depth
    16 Bit, 18 Bit
  • Dark Current
    0.05 to 0.0008 e-/pixel/sec
  • Linearity
    Better than 99%
  • Read Noise
    2.1 e-
  • Detection Wavelength Range
    Near IR, Visible
  • Cooling Method
    Thermoelectric Cooling (TEC), Liquid Cooling, Air Cooling
  • Gain Register Well Depth
    350,000 e-
  • Operating Humidity
    70% (non-condensing)
  • Timestamp Accuracy
    10 ms
  • Pixels
    16.8 MP
  • ADC Resolution
    16 bit to 18 bit
  • Compatible System
    Windows (7 or 8) or Linux
  • Chrome
    Visible, Near-Infrared
  • Power Supply
    100 - 240 VAC, 50 - 60 Hz
  • Power Consumption
    500W
  • Readout Rate
    0.1, 1, 3 MHz
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    CCD23184 -CCD60

Physical Properties

  • Weight
    8.25 Kg [18lbs 3oz ]

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -30 to 50 Degree C
