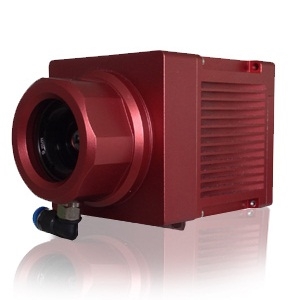

IRSX-I 640

Scientific & Industrial Camera by Automation Technology GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Automation Technology GmbH.

The IRSX-I 640 from Automation Technology GmbH is a Scientific & Industrial Camera with Mega Pixels 0.328 MP, Frame Rate 9 to 30 Hz, Wavelength Range 7.5 to 13 µm, Bit Depth 8 Bit, 14 Bit, 16 Bit. More details for IRSX-I 640 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IRSX-I 640
  • Manufacturer
    Automation Technology GmbH
  • Description
    IRS-I: Self-Contained Thermal Imaging Systems

Applications

  • Application
    Industrial, Thermal Imaging
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    0.328 MP
  • Resolution
    640 x 512
  • Sensor Type
    Microbolometer
  • Frame Rate
    9 to 30 Hz
  • Wavelength Range
    7.5 to 13 µm
  • Pixel Size(H x V)
    17 x 17 µm
  • Spectral Range
    7.5 to 13 µm
  • Bit Depth
    8 Bit, 14 Bit, 16 Bit
  • Cooling Method
    Air Cooling
  • Operating Humidity
    0 to 95%
  • Pixels
    0.328 MP
  • trigger Output Signals
    24V, Protection: opto-isolated
  • Chrome
    Infrared
  • Power Supply
    10 to 24 VDC
  • Power Consumption
    6 W
  • RoHs
    Yes
  • Note
    NETD: 50 mK, Digital I/O: 24V, Protection: opto-isolated

Physical Properties

  • Camera Head Size
    55 x 55 x 61.5 mm
  • Weight
    270 g

Temperature

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -50 to 80 Degree C
