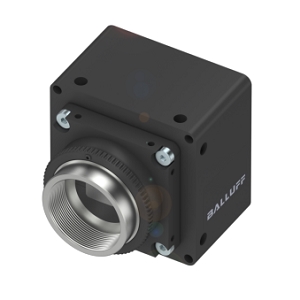

BVS CA-GX2-0081AG/C

Scientific & Industrial Camera by Balluff GmbH
124 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Balluff GmbH.

The BVS CA-GX2-0081AG/C from Balluff GmbH is a Scientific & Industrial Camera with Mega Pixels 8.1 MP, Frame Rate 29.1 fps / 48 fps. More details for BVS CA-GX2-0081AG/C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BVS CA-GX2-0081AG/C
  • Manufacturer
    Balluff GmbH
  • Description
    8.1 MP Dual GigE Vision Industrial Camera with a frame rate of 29.1 fps / 48 fps

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    8.1 MP
  • Resolution
    2856(H) x 2848(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    29.1 fps / 48 fps
  • Pixel Size(H x V)
    2.74 µm
  • Exposure Time :
    10 µs to 20 s
  • Sensor Format
    2/3 Inches
  • Sensor Configurations
    Monochrome, RGB, Bayer, Color
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    1 x 1 to 16 x 16
  • Trigger Mode
    Hardware trigger, Software trigger, Free run
  • Compliances
    CE, UKCA, cULus, WEEE
  • Chrome
    Monochrome, RGB, Bayer, Color
  • Lens Mount
    C-Mount
  • Voltage(DC)
    10 to 28 VDC
  • Power Consumption
    4.9 W
  • Sensor Model Number
    IMX546

Physical Properties

  • Camera Housing
    Aluminium, Powder coated, Painted
  • Weight
    170 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C
