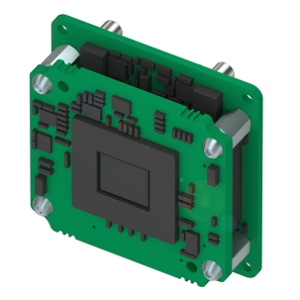

BVS CA-SF5-0315ZG/C

Scientific & Industrial Camera by Balluff GmbH
124 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Balluff GmbH.

The BVS CA-SF5-0315ZG/C from Balluff GmbH is a Scientific & Industrial Camera with Mega Pixels 31.5 MP, Frame Rate 12 fps / 14.4 fps. More details for BVS CA-SF5-0315ZG/C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BVS CA-SF5-0315ZG/C
  • Manufacturer
    Balluff GmbH
  • Description
    31.5 MP USB 3.0 Vision Industrial Camera with a frame rate of 12 fps / 14.4 fps

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB 2.0 / 3.0, GenICam

General Parameters

  • Camera Type
    Board Cameras, Area Scan Cameras
  • Mega Pixels
    31.5 MP
  • Resolution
    6480(H) x 4856(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    12 fps / 14.4 fps
  • Pixel Size(H x V)
    3.45 µm
  • Exposure Time :
    10 µs to 20 s
  • Sensor Format
    APS-C
  • Sensor Configurations
    Monochrome, RGB, Bayer, Color
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    1 x 1 to 16 x 16
  • Trigger Mode
    Hardware trigger, Software trigger, Free run
  • Compliances
    CE, UKCA, WEEE
  • Chrome
    Monochrome, RGB, Bayer, Color
  • Lens Mount
    C-Mount, M42x1 mount, F-Mount, TFL mount, S-Mount
  • Voltage(DC)
    4.45 to 5.25 VDC
  • Power Consumption
    5 W
  • Sensor Model Number
    IMX342

Physical Properties

  • Camera Housing
    Board Level
  • Weight
    6 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C
