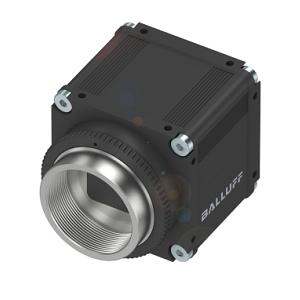

BVS02E2

Scientific & Industrial Camera by Balluff GmbH
124 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Balluff GmbH.

The BVS02E2 from Balluff GmbH is a Scientific & Industrial Camera with Mega Pixels 1.34 MP, Frame Rate 88.7 fps. More details for BVS02E2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BVS02E2
  • Manufacturer
    Balluff GmbH
  • Description
    1.34 MP SWIR and UV Camera with a frame rate of 88.7 fps

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Area Scan Cameras, SWIR Cameras
  • Mega Pixels
    1.34 MP
  • Resolution
    1296(H) x 1032(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    88.7 fps
  • Pixel Size(H x V)
    5 x 5 µm
  • Exposure Time :
    10 µs to 20 s
  • Sensor Format
    1/2 Inches
  • Sensor Configurations
    Monochrome, RGB, Bayer
  • Detection Wavelength Range
    Ultraviolet, Short-Wave IR
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    1 x 1 to 16 x 16
  • Trigger Mode
    Hardware trigger, Software trigger, Free run
  • Compliances
    CE, UKCA, cULus, WEEE, FCC
  • Chrome
    Monochrome, RGB, Bayer
  • Lens Mount
    M30 Mount
  • Voltage(DC)
    10 to 28 VDC
  • Sensor Manufacturer
    Sony
  • Sensor Model Number
    IMX990

Physical Properties

  • Camera Housing
    Aluminium, Powder coated
  • Dimension
    39.8 x 39.8 x 50 mm
  • Weight
    110 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
