a2A1280-125umSWIR

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

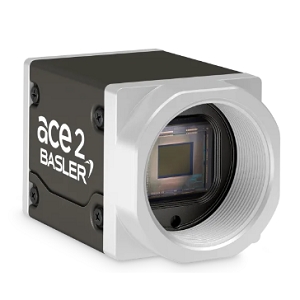

The a2A1280-125umSWIR from BASLER is a Scientific & Industrial Camera with Mega Pixels 1.3 MP, Frame Rate 125 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit. More details for a2A1280-125umSWIR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    a2A1280-125umSWIR
  • Manufacturer
    BASLER
  • Description
    1.3 MP SWIR InGaAs Area Scan Cameras with 1280(H) x 1024(V) Resolution

Connections & Interface

  • Data Interface
    USB, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.3 MP
  • Resolution
    1280(H) x 1024(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Frame Rate
    125 fps
  • Pixel Size(H x V)
    5 x 5 µm (H x V)
  • Active Image Area
    6.4 x 5.1 mm (Sensor size)
  • Sensor Format
    1/2 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Short-Wave IR
  • Exposure Mode
    Programmable
  • Pixels
    1.3 MP
  • Trigger Mode
    Free-run, Programmable
  • Compliances
    CE, IP30, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX990

Physical Properties

  • Camera Housing
    Box
  • Dimension
    42.8 x 29 x 29 mm (L x W x H)
  • Weight
    85 g

Temperature

  • Operating Temperature
    -10 to 60 Degree C
