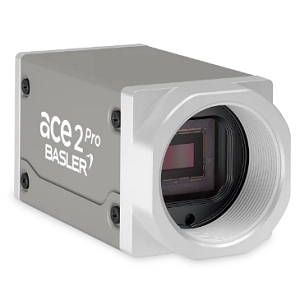

a2A2590-22gmPRO

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The a2A2590-22gmPRO from BASLER is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 22 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit, SNR 38.6 dB. More details for a2A2590-22gmPRO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    a2A2590-22gmPRO
  • Manufacturer
    BASLER
  • Description
    5 MP CMOS Area Scan Cameras with 2592(H) x 1944(V) Resolution

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2592(H) x 1944(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    22 fps
  • Pixel Size(H x V)
    2 x 2 µm (H x V)
  • Active Image Area
    5.2 x 3.9 mm (Sensor size)
  • Full Well Capacity :
    7.2 ke- (Saturation)
  • Sensor Format
    1/2.8 Inches
  • Dynamic Range
    69.2 dB
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • SNR
    38.6 dB
  • Read Noise
    1.96 e- (Dark)
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Programmable
  • Pixels
    5 MP
  • Trigger Mode
    Programmable
  • Compliances
    CE, EAC, FCC, IP30, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • Voltage(DC)
    12 to 24 VDC
  • Power Consumption
    2.7 W
  • Optical Diagonal
    6.5 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX334ROI
  • Note
    Frame Rate Compression Beyond: up to 60 fps

Physical Properties

  • Camera Housing
    Box
  • Dimension
    55.5 x 29 x 29 mm (L x W x H)
  • Weight
    105 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
