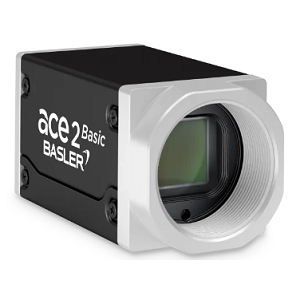

a2A5328-4gmBAS

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The a2A5328-4gmBAS from BASLER is a Scientific & Industrial Camera with Mega Pixels 24.4 MP, Frame Rate 4 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit, SNR 39.9 dB. More details for a2A5328-4gmBAS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    a2A5328-4gmBAS
  • Manufacturer
    BASLER
  • Description
    24.4 MP CMOS Area Scan Cameras with 5328(H) x 4608(V) Resolution

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    24.4 MP
  • Resolution
    5328(H) x 4608(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    4 fps
  • Pixel Size(H x V)
    2.74 x 2.74 µm (H x V)
  • Active Image Area
    14.57 x 12.6 mm (Sensor size)
  • Full Well Capacity :
    9.7 ke- (Saturation)
  • Sensor Format
    1.2 Inches
  • Dynamic Range
    70.7 dB
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • SNR
    39.9 dB
  • Read Noise
    2.2 e- (Dark)
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Programmable
  • Pixels
    24.4 MP
  • Trigger Mode
    Programmable
  • Compliances
    CE, EAC, FCC, IP30, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • Voltage(DC)
    12 to 24 VDC
  • Power Consumption
    2.9 W
  • Optical Diagonal
    19.26 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX540

Physical Properties

  • Camera Housing
    Box
  • Dimension
    55.5 x 29 x 29 mm (L x W x H)
  • Weight
    100 g

Temperature

  • Operating Temperature
    -10 to 60 Degree C
