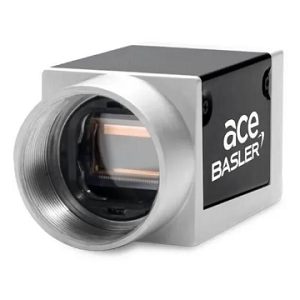

acA1600-60gm

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The acA1600-60gm from BASLER is a Scientific & Industrial Camera with Mega Pixels 1.9 MP, Frame Rate 60 fps, Bit Depth 12 Bit. More details for acA1600-60gm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    acA1600-60gm
  • Manufacturer
    BASLER

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.9 MP
  • Resolution
    1602(H) x 1202(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter, Rolling Shutter
  • Frame Rate
    60 fps
  • Pixel Size(H x V)
    4.5 x 4.5 µm
  • Active Image Area
    7.20 mm x 5.40 mm
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    12 Bit
  • Color / Bit Depth
    12 Bit
  • Sensor Configurations
    Monochrome
  • Pixels
    1.9 MP
  • Trigger Mode
    External Trigger, Software, Free-Run
  • Compliances
    FCC, CE
  • Compatible System
    Windows, Linux - 32 bit and 64 bit
  • Chrome
    Monochrome
  • Lens Mount
    CS-Mount
  • Power Supply
    12 VDC
  • Power Consumption
    2.1 to 2.7 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    EV76C570

Physical Properties

  • Dimension
    42.0 x 29.0 x 29.0 mm (L x W x H)
  • Weight
    90 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
Click to view more product details on manufacturer's website
