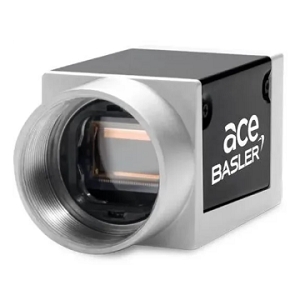

acA2040-25gmNIR

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The acA2040-25gmNIR from BASLER is a Scientific & Industrial Camera with Mega Pixels 4.2 MP, Frame Rate 25 fps, Bit Depth 12 Bit, SNR 40.9 dB. More details for acA2040-25gmNIR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    acA2040-25gmNIR
  • Manufacturer
    BASLER

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    4.2 MP
  • Resolution
    2048(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    25 fps
  • Pixel Size(H x V)
    5.5 x 5.5 µm
  • Active Image Area
    11.26 mm x 11.26 mm
  • Sensor Format
    1 Inches
  • Dynamic Range
    59 dB
  • Bit Depth
    12 Bit
  • Color / Bit Depth
    12 Bit
  • SNR
    40.9 dB
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Near IR
  • Pixels
    4.2 MP
  • Trigger Mode
    External Trigger, Software, Free-Run
  • Compliances
    FCC, CE
  • Compatible System
    Windows, Linux - 32 bit and 64 bit
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • Power Supply
    12 VDC
  • Power Consumption
    2.6 to 3.1 W
  • RoHs
    Yes
  • Sensor Manufacturer
    CMOSIS
  • Sensor Model Number
    CMV4000 NIR-enhanced
  • Note
    Dark Noise: 14 e¯, Saturation Capacity: 12.4 ke¯

Physical Properties

  • Dimension
    42.0 x 29.0 x 29.0 mm (L x W x H)
  • Weight
    90 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
Click to view more product details on manufacturer's website
