acA4024-29um

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

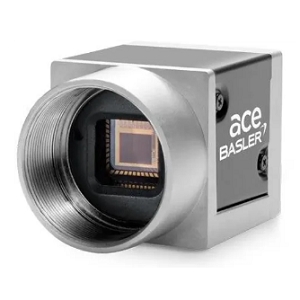

The acA4024-29um from BASLER is a Scientific & Industrial Camera with Mega Pixels 12.2 MP, Frame Rate 31 fps, SNR 40.4 dB. More details for acA4024-29um can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    acA4024-29um
  • Manufacturer
    BASLER
  • Description
    12.2 MP CMOS Area Scan Cameras with 4024(H) x 3036(V) Resolution

Connections & Interface

  • Data Interface
    USB, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    12.2 MP
  • Resolution
    4024(H) x 3036(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    31 fps
  • Pixel Size(H x V)
    1.85 x 1.85 µm (H x V)
  • Active Image Area
    7.44 x 5.61 mm (Sensor size)
  • Full Well Capacity :
    11 ke- (Saturation)
  • Sensor Format
    1/1.7 Inches
  • Dynamic Range
    70.3 dB
  • SNR
    40.4 dB
  • Read Noise
    3.3 e- (Dark)
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Automatic, Manual
  • Pixels
    12.2 MP
  • Compliances
    CE, EAC, FCC, IP30, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • Power Consumption
    3 W
  • Optical Diagonal
    9.33 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX226

Physical Properties

  • Camera Housing
    Box
  • Dimension
    29.3 x 29 x 29 mm (L x W x H)
  • Weight
    80 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
