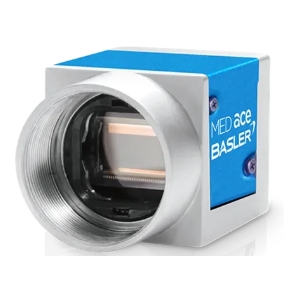

Basler MED ace 5.1 MP 75 mono

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The Basler MED ace 5.1 MP 75 mono from BASLER is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 75 fps, Quantum Efficiency(QE) 56 to 63.7%, Bit Depth 10 Bit, 12 Bit, SNR 39.8 to 40.3 dB. More details for Basler MED ace 5.1 MP 75 mono can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Basler MED ace 5.1 MP 75 mono
  • Manufacturer
    BASLER
  • Description
    5 MP CMOS Area Scan Cameras with 2448(H) x 2048(V) Resolution

Connections & Interface

  • Data Interface
    USB, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2448(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    75 fps
  • Pixel Size(H x V)
    3.45 x 3.45 µm (H x V)
  • Quantum Efficiency(QE)
    56 to 63.7%
  • Active Image Area
    8.45 x 7.07 mm (Sensor size)
  • Full Well Capacity :
    9.5 to 10.7 ke- (Saturation)
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    70 to 71.7 dB
  • Bit Depth
    10 Bit, 12 Bit
  • Color / Bit Depth
    10 Bit, 12 Bit
  • SNR
    39.8 to 40.3 dB
  • Read Noise
    2.7 to 3 e- (Dark)
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Programmable
  • Pixels
    5 MP
  • Trigger Mode
    Free-run, Programmable
  • Compliances
    CE, EAC, FCC Class B, IP30, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount
  • Power Consumption
    3.2 W
  • Optical Diagonal
    11.02 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX250

Physical Properties

  • Camera Housing
    Box
  • Dimension
    29.3 x 29 x 29 mm (L x W x H)
  • Weight
    80 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
