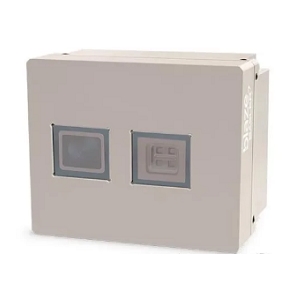

blaze-101

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The blaze-101 from BASLER is a Scientific & Industrial Camera with Mega Pixels 0.31 MP, Frame Rate 30 fps, Wavelength Range 940 nm. More details for blaze-101 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    blaze-101
  • Manufacturer
    BASLER
  • Description
    VGA Time-of-Flight Camera with 640(H) x 480(V) Resolution

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Time-of-Flight Cameras
  • Mega Pixels
    0.31 MP
  • Resolution
    640(H) x 480(V)
  • Frame Rate
    30 fps
  • Wavelength Range
    940 nm
  • Spectral Range
    940 nm
  • Sensor Configurations
    monochrome
  • Exposure Mode
    Programmable
  • Pixels
    VGA
  • Trigger Mode
    Free-run
  • Compliances
    CE, DIN EN 55022, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 60068-2-64, DIN EN 61000-6-2, DIN EN 61000-6-4, EAC, Eye safety: IEC 60825-1:2014 Laser Class 1, FCC, IP67, KC, RoHS
  • Compatible System
    ARM Linux (AArch64), Linux (x86_64), Windows
  • Accuracy
    ±5 mm
  • Chrome
    monochrome
  • Voltage(DC)
    24 VDC ±10%
  • Power Consumption
    <15 W (Mean), <55 W (Peak)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    DepthSense™ IMX556
  • Note
    Latency: <85 ms

Physical Properties

  • Camera Housing
    Box
  • Dimension
    100 x 81 x 64 mm (L x W x H)
  • Weight
    690 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
