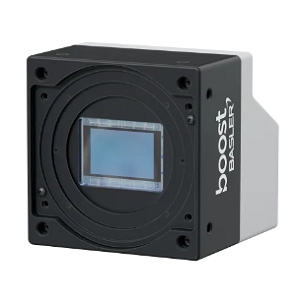

boA9344-30cm

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The boA9344-30cm from BASLER is a Scientific & Industrial Camera with Mega Pixels 65 MP, Frame Rate 30 fps, Bit Depth 8 Bit, 10 Bit. More details for boA9344-30cm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    boA9344-30cm
  • Manufacturer
    BASLER
  • Description
    65 MP CMOS Area Scan Cameras with 9344(H) x 7000(V) Resolution

Connections & Interface

  • Data Interface
    CoaXPress, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    65 MP
  • Resolution
    9344(H) x 7000(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    30 fps
  • Pixel Size(H x V)
    3.2 x 3.2 µm (H x V)
  • Active Image Area
    29.9 x 22.4 mm (Sensor size)
  • Sensor Format
    2.3 Inches
  • Bit Depth
    8 Bit, 10 Bit
  • Color / Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Monochrome
  • Pixels
    65 MP
  • Compliances
    CE, FCC, KC, RoHS, UKCA
  • Chrome
    Monochrome
  • Voltage(DC)
    PoCXP or 24 VDC
  • Power Consumption
    14 W
  • Optical Diagonal
    37.4 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Gpixel Microelectronics
  • Sensor Model Number
    GMAX3265

Physical Properties

  • Camera Housing
    Box
  • Dimension
    66.6 x 65 x 65 mm (L x W x H)
  • Weight
    400 g

Temperature

  • Operating Temperature
    70 Degree C
Click to view more product details on manufacturer's website
