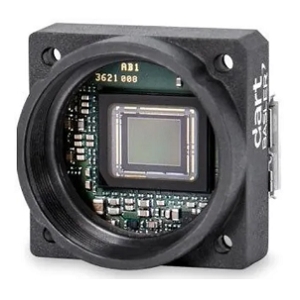

daA2448-70um (CS-Mount)

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The daA2448-70um (CS-Mount) from BASLER is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 72 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit. More details for daA2448-70um (CS-Mount) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    daA2448-70um (CS-Mount)
  • Manufacturer
    BASLER
  • Description
    5 MP CMOS Area Scan Cameras with 2448(H) x 2048(V) Resolution

Connections & Interface

  • Data Interface
    USB, GenICam

General Parameters

  • Camera Type
    Board Cameras, Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2448(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    72 fps
  • Pixel Size(H x V)
    2.74 x 2.74 µm (H x V)
  • Active Image Area
    6.71 x 5.61 mm (Sensor size)
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Pixels
    5 MP
  • Compliances
    CE, EAC, KC, RoHS, UL
  • Chrome
    Monochrome
  • Lens Mount
    S-Mount
  • Optical Diagonal
    8.7 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX548

Physical Properties

  • Camera Housing
    Board Level
  • Dimension
    19.9 x 29.3 x 29 mm (L x W x H)
  • Weight
    15 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
