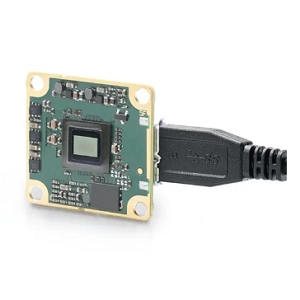

daA3840-45uc (No-Mount)

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The daA3840-45uc (No-Mount) from BASLER is a Scientific & Industrial Camera with Mega Pixels 8.3 MP, Frame Rate 45 fps, Bit Depth 8 Bit, 12 Bit. More details for daA3840-45uc (No-Mount) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    daA3840-45uc (No-Mount)
  • Manufacturer
    BASLER
  • Description
    8.3 MP CMOS Area Scan Cameras with 3840(H) x 2160(V) Resolution

Connections & Interface

  • Data Interface
    USB, GenICam

General Parameters

  • Camera Type
    Board Cameras, Area Scan Cameras
  • Mega Pixels
    8.3 MP
  • Resolution
    3840(H) x 2160(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    45 fps
  • Pixel Size(H x V)
    2 x 2 µm (H x V)
  • Active Image Area
    7.68 x 4.32 mm (Sensor size)
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Color
  • Exposure Mode
    Programmable
  • Pixels
    8.3 MP
  • Trigger Mode
    Free-run, Programmable
  • Compliances
    CE, EAC, FCC, KC, RoHS, UL
  • Chrome
    Color
  • Power Consumption
    2 W
  • Optical Diagonal
    8.81 mm (Sensor)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX334

Physical Properties

  • Camera Housing
    Board Level
  • Dimension
    7.9 x 27 x 27 mm (L x W x H)
  • Weight
    5 g

Temperature

  • Operating Temperature
    0 to 75 Degree C
Click to view more product details on manufacturer's website
