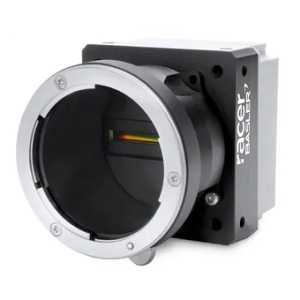

raL6144-16gm

Scientific & Industrial Camera by BASLER
Request Quote

Note: Your Quotation Request will be directed to BASLER.

The raL6144-16gm from BASLER is a Scientific & Industrial Camera with Mega Pixels 0.01 MP, 6k, Bit Depth 8 Bit, 12 Bit, Line Rate 17 kHz, SNR 43.9 dB. More details for raL6144-16gm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    raL6144-16gm
  • Manufacturer
    BASLER
  • Description
    CMOS Line Scan Cameras with 6144(H) x 1(V) Resolution

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.01 MP, 6k
  • Resolution
    6144(H) x 1(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Pixel Size(H x V)
    7 µm x 7 µm (H x V)
  • Full Well Capacity :
    24.9 ke- (Saturation)
  • Dynamic Range
    69.6 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Line Rate
    17 kHz
  • Line Rate
    17 kHz
  • SNR
    43.9 dB
  • Read Noise
    8.2 e (Dark)
  • Sensor Configurations
    monochrome
  • Exposure Mode
    Triggered (Width, Timed)
  • Pixels
    6k
  • Trigger Mode
    Free-run
  • Compliances
    CE, EAC,FCC, KC, IP30, RoHS, UL
  • Chrome
    monochrome
  • Lens Mount
    C-mount, F-mount, M42 x 0.75, M42 x 1, M58 x 0.75
  • Voltage(DC)
    12 to 24 VDC
  • RoHs
    Yes
  • Sensor Manufacturer
    Awaiba
  • Sensor Model Number
    DR-6k-7

Physical Properties

  • Camera Housing
    Box
  • Dimension
    36 x 56 x 62 mm (L x W x H)
  • Weight
    240 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
