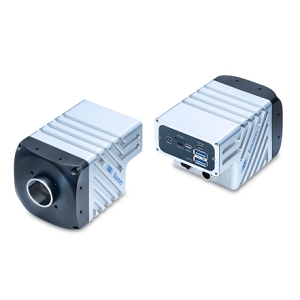

VAX-32M.I.NVN

Scientific & Industrial Camera by Baumer
77 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Baumer.

The VAX-32M.I.NVN from Baumer is a Scientific & Industrial Camera with Mega Pixels 3.1 MP, Frame Rate 55 fps, Wavelength Range 535 nm, Bit Depth 64 Bit, SNR 39.7 dB. More details for VAX-32M.I.NVN can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VAX-32M.I.NVN
  • Manufacturer
    Baumer
  • Description
    3.1 MP, 55 fps Global Shutter Monochrome with Gigabit Ethernet(GigE), USB 3.0, RS-232 Interface Industrial Camera

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), USB, RS-232

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    3.1 MP
  • Resolution
    2048(H) x 1536(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    55 fps
  • Wavelength Range
    535 nm
  • Pixel Size(H x V)
    3.45 µm x 3.45 µm
  • Exposure Time :
    0.001 to 60000 ms
  • Sensor Format
    1/1.8 Inches
  • Dynamic Range
    70.7 dB
  • Bit Depth
    64 Bit
  • SNR
    39.7 dB
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Gain Range
    0 to 48 dB
  • Operating Humidity
    10 to 90%
  • Pixel Binning
    2 x 2, 2 x 1, 1 x 2
  • Pixels
    3.1 MP
  • ADC Resolution
    64 Bit
  • Compatible System
    Linux
  • Chrome
    Monochrome
  • Lens Mount
    C-mount
  • Voltage(DC)
    48 V
  • Power Consumption
    13.2 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX265 Gen2
  • Note
    Dark noise: 2.04 e-, Saturation capacity: 9341 e-

Physical Properties

  • Dimension
    70 x 70 x 120.4 mm (W x H x Dep)
  • Weight
    <650 g

Temperature

  • Operating Temperature
    0 to 65 Degree C
