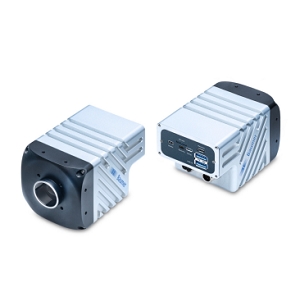

The VAX-50C.I.NVX from Baumer is a 5 Megapixel CMOS Monochrome Camera that has a resolution of 2448 x 2048 pixels. It has a global shutter in a 2/3" optical format that delivers a frame rate of 73 fps, 76 fps & 77 fps. This camera has a Sony IMX250 Gen2 progressive scan CMOS sensor with a pixel size of 3.45 μm x 3.45 μm. It has a dynamic range of 70.6 dB and quantum efficiency of 45.9% (at 465 nm), 58.2% (at 535 nm) & 53.8% (at 630 nm).
The VAX-50C.I.NVX has an exposure time of 0.001 ms - 60000 ms and a saturation capacity of 9360 e-. It has a signal-to-noise ratio (SNR) of 39.7 dB and dark noise of 2 e-. This camera features analog controls with adjustable gain & offset and supports multiple color models, including Mono, Raw Bayer, RGB & BGR. It includes automatic functions such as exposure control, gain adjustment, white balance, and color transformation.
The VAX-50C.I.NVX supports multiple pixel formats, including BayerRG8, BayerRG10, BayerRG12, Mono8, Mono10, Mono12, RGB8, and BGR8. It can be controlled via USB 3.0, RS232 & Gigabit Ethernet interfaces and has a C-mount lens. This monochrome smart camera dissipates 17.9 W of power. It is available in a package that measures 70 mm x 70 mm x 120 mm and is ideal for industrial inspection & automation applications.
