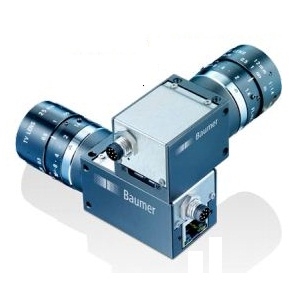

VCXG-25C

Scientific & Industrial Camera by Baumer
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Baumer.

The VCXG-25C from Baumer is a Scientific & Industrial Camera with Mega Pixels 2.3 MP, Frame Rate 53 to 59 fps, Wavelength Range 465 nm, 536 nm, 631 nm, Quantum Efficiency(QE) 44.1 to 51.5%, Bit Depth 8 Bit, 10 Bit. More details for VCXG-25C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCXG-25C
  • Manufacturer
    Baumer

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.3 MP
  • Resolution
    2592(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    53 to 59 fps
  • Wavelength Range
    465 nm, 536 nm, 631 nm
  • Pixel Size(H x V)
    4.8 x 4.8 µm
  • Quantum Efficiency(QE)
    44.1 to 51.5%
  • Exposure Time :
    0,02 to 1000 ms
  • Sensor Format
    2/3 Inches
  • Bit Depth
    8 Bit, 10 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Color
  • Cooling Method
    Uncooled
  • Gain Range
    0 to 12 dB
  • Operating Humidity
    10% to 90% (Non-Condesioning)
  • Pixels
    2.3 MP
  • Trigger Mode
    Free Running, Trigger
  • Compliances
    CE
  • Camera Window
    Zinc Die Casting, Nickel-Plated, IP 40
  • Chrome
    Color
  • Lens Mount
    C-Mount
  • Power Supply
    12 to 48 VDC
  • Power Consumption
    3.0 to 3.6 W
  • RoHs
    Yes
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    PYTHON2000

Physical Properties

  • Dimension
    29 x 29 x 49 mm (W x H x D)
  • Weight
    120 g

Temperature

  • Operating Temperature
    5 to 65 Degree C
