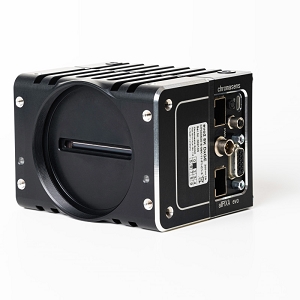

The allPIXA evo 8K from Chromasens is a Mono/Color/NIR Line Scan Camera that has a resolution of 8192 x 16. It has a CMOS line scan sensor that delivers a line rate of up to 90 kHz in RGB 3 line mode, 68 kHz in RGB+NIR 4 line mode and 100 kHz in mono 1 line mode. This camera also has ROI mode for RGB and Mono that delivers a line rate of up to 100 kHz. It supports 2 x TDI for color and 4/8 x TDI for mono mode. This camera supports continuous white balancing & precise multi-camera synchronization features and has a multi-flash function for multiple image acquisition in one pass. It can be controlled via 2 x SFP+, external I/O (DSUB) and USB 2.0 (micro USB) interfaces. This camera produces data in an 8/10/12 bit format via single/dual 10 GigE and GigE Vision 2.0 output interfaces.
The allPIXA evo 8K requires a DC supply of 12-24 V and is available in an F-mount package that measures 102 x 76 x 82 mm. It is ideal for High-speed print inspection, PCB & AOI, wafer inspection, sorting processes, high-resolution surface inspection, food, semiconductor and EV battery applications.
