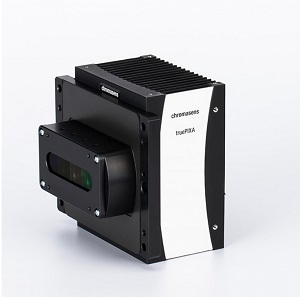

CP000464-C01-090

Scientific & Industrial Camera by Chromasens
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Chromasens.

The CP000464-C01-090 from Chromasens is a Scientific & Industrial Camera with Mega Pixels 0.002 MP, Wavelength Range 380 to 730 nm, Bit Depth 16 Bit, Line Rate 21.2 kHz. More details for CP000464-C01-090 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CP000464-C01-090
  • Manufacturer
    Chromasens
  • Description
    Multi-Spectral Camera truePIXA compact 12 channel - 90dpi

Applications

  • Application
    Spectral Measurement, Color Measurement, Quality Control, Sorting Processes, Optical Density, Surface, Defect, Web
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    Camera Link, RS-232

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.002 MP
  • Resolution
    1595(H) x 1(V)
  • Sensor Type
    CCD
  • Wavelength Range
    380 to 730 nm
  • Pixel Size(H x V)
    10 x 10 µm
  • Bit Depth
    16 Bit
  • Line Rate
    21.2 kHz
  • Detector Sensitivity
    Spectral sensitivity: 380 to 730 nm
  • Sensor Configurations
    Multispectral, Color, RGB
  • Cooling Method
    Uncooled
  • Pixels
    0.002 MP
  • Trigger Mode
    Free run / external trigger
  • Chrome
    RGB
  • Voltage(DC)
    24 VDC
  • Power Supply
    16 W
  • RoHs
    Yes
  • Note
    Numbers of Pixels: 1528

Physical Properties

  • Dimension
    102.3 x 134 x 126 mm

Temperature

  • Operating Temperature
    0 to 60 Degree C
