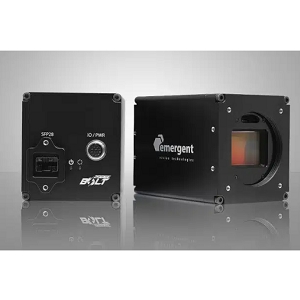

HB-12000 Series

Scientific & Industrial Camera by Emergent Vision Technologies, Inc.
127 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Emergent Vision Technologies, Inc..

The HB-12000 Series from Emergent Vision Technologies, Inc. is a Scientific & Industrial Camera with Mega Pixels 12 MP, Frame Rate 188 fps, Bit Depth 8 Bit, 10 Bit. More details for HB-12000 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HB-12000 Series
  • Manufacturer
    Emergent Vision Technologies, Inc.
  • Description
    25 GigE Area-Scan Cameras BOLT Series with 12 Mega Pixel

Applications

  • Application
    Virtual Reality, Goal Line Technology, Volumetric Capture, Motion Capture, Immersive 3D Content, Finish Line Vision, Referee Assist, Flat Panel Inspection, Machine Vision
  • Application Industry
    Entertainment and Media, Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    25GigE SFP28, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    12 MP
  • Resolution
    4096(H) x 3072(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    188 fps
  • Pixel Size(H x V)
    5.5 x 5.5 µm
  • Exposure Time :
    10 µs to 1 s
  • Sensor Format
    28 mm
  • Dynamic Range
    60 dB
  • Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Monochrome, Color, RGB, BGR, Bayer
  • Detection Wavelength Range
    Ultraviolet
  • Trigger Mode
    Software, External (Pulse or Edge)
  • Warranty
    2 Years
  • Compliances
    CE, FCC, RoHS, WEEE
  • Compatible System
    Win10 (64 bit), Linux (64 bit)
  • Chrome
    Monochrome, Color, RGB, BGR, Bayer
  • Integration Time
    10 µs to 1 s
  • Lens Mount
    M42, F Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    9 W
  • RoHs
    Yes
  • Sensor Manufacturer
    AMS
  • Sensor Model Number
    CMV12000

Physical Properties

  • Dimension
    97 x 66 x 73 mm
  • Weight
    600 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C
