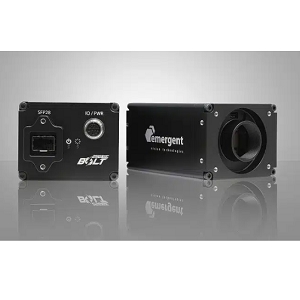

HB-500-S Series

Scientific & Industrial Camera by Emergent Vision Technologies, Inc.
127 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Emergent Vision Technologies, Inc..

The HB-500-S Series from Emergent Vision Technologies, Inc. is a Scientific & Industrial Camera with Mega Pixels 0.5 MP, Frame Rate 1594.7 fps, Bit Depth 8 Bit, 12 Bit. More details for HB-500-S Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HB-500-S Series
  • Manufacturer
    Emergent Vision Technologies, Inc.
  • Description
    25 GigE Area-Scan Cameras BOLT Series with 0.5 Mega Pixel

Applications

  • Application
    Production Lines, Immersive 3D Content, Finish Line Vision, Referee Assist
  • Application Industry
    Entertainment and Media

Connections & Interface

  • Data Interface
    25GigE SFP28, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    0.5 MP
  • Resolution
    812(H) x 620(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    1594.7 fps
  • Pixel Size(H x V)
    9 x 9 µm
  • Exposure Time :
    5 µs to 1 s
  • Sensor Format
    1/1.7 Inches
  • Dynamic Range
    86 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Monochrome, Color, RGB, BGR, Bayer
  • Trigger Mode
    Software, External (Pulse or Edge)
  • Warranty
    2 Years
  • Compliances
    CE, FCC, RoHS, WEEE
  • Compatible System
    Win10 (64 bit), Linux (64 bit)
  • Chrome
    Monochrome, Color, RGB, BGR, Bayer
  • Integration Time
    5 µs to 1 s
  • Lens Mount
    C-Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    9 W
  • Optical Diagonal
    9.2 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony
  • Sensor Model Number
    IMX426

Physical Properties

  • Dimension
    97 x 66 x 52 mm
  • Weight
    500 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C
