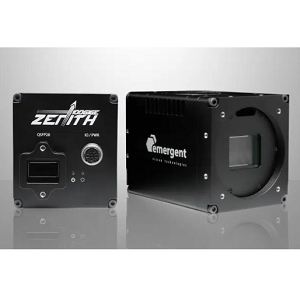

HZ-21000-G Series

Scientific & Industrial Camera by Emergent Vision Technologies, Inc.
127 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Emergent Vision Technologies, Inc..

The HZ-21000-G Series from Emergent Vision Technologies, Inc. is a Scientific & Industrial Camera with Mega Pixels 21 MP, Frame Rate 400 to 542 fps, Bit Depth 8 Bit, 10 Bit. More details for HZ-21000-G Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HZ-21000-G Series
  • Manufacturer
    Emergent Vision Technologies, Inc.
  • Description
    100 GigE Area-Scan Cameras Zenith Series with 21 Mega Pixel

Applications

  • Application
    Virtual Reality, Goal Line Technology, Volumetric Capture, Motion Capture, Immersive 3D Content, Finish Line Vision, Referee Assist, Flat Panel Inspection, Machine Vision
  • Application Industry
    Entertainment and Media, Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    100GigE QSFP28, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    21 MP
  • Resolution
    5120(H) x 4096(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    400 to 542 fps
  • Pixel Size(H x V)
    4.5 x 4.5 µm
  • Exposure Time :
    1 µs to 1 s
  • Sensor Format
    22.5 mm
  • Dynamic Range
    >66 dB
  • Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Monochrome, Color, Bayer
  • Trigger Mode
    Software, External (Pulse or Edge)
  • Warranty
    2 Years
  • Compliances
    CE, FCC, RoHS, WEEE
  • Compatible System
    Win10 (64 bit), Linux (64 bit)
  • Chrome
    Monochrome, Color, Bayer
  • Integration Time
    1 µs to 1 s
  • Lens Mount
    M60 Mount, EF/F Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    18 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Gpixel
  • Sensor Model Number
    GSPRINT4521

Physical Properties

  • Dimension
    97 x 66 x 73 mm
  • Weight
    750 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
