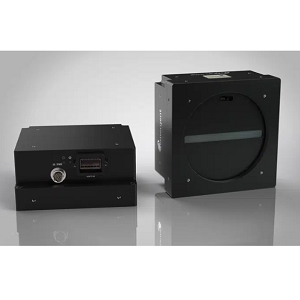

PINNACLE LZ-16KG5

Scientific & Industrial Camera by Emergent Vision Technologies, Inc.
127 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Emergent Vision Technologies, Inc..

The PINNACLE LZ-16KG5 from Emergent Vision Technologies, Inc. is a Scientific & Industrial Camera with Bit Depth 8 Bit, 10 Bit, Line Rate 400 kHz (Single), 133 kHz (Trilinear). More details for PINNACLE LZ-16KG5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PINNACLE LZ-16KG5
  • Manufacturer
    Emergent Vision Technologies, Inc.
  • Description
    100 GigE Line-Scan Cameras with a line rate of 133 to 400 kHz

Applications

  • Application
    Industrial Inspection, Printing Inspection, Label Inspection, Film Inspection, PCB Inspection, Automotive Inspection, Food Sorting and Grading, Pharmaceutical Inspection
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare, Consumer Electronics

Connections & Interface

  • Data Interface
    100GigE QSFP28, GenICam

General Parameters

  • Camera Type
    Line Scan Cameras
  • Resolution
    16Kx16
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Pixel Size(H x V)
    5 x 5 µm
  • Exposure Time :
    1 µs to 1 s
  • Dynamic Range
    66 dB
  • Bit Depth
    8 Bit, 10 Bit
  • Line Rate
    400 kHz (Single), 133 kHz (Trilinear)
  • Sensor Configurations
    Monochrome, Color, RGB
  • Trigger Mode
    Encoder
  • Warranty
    2 Years
  • Compliances
    CE, FCC, RoHS, WEEE
  • Compatible System
    Win 7, 8, 10, Linux (64bit)
  • Chrome
    Monochrome, Color, RGB
  • Integration Time
    1 µs to 1 s
  • Lens Mount
    M95
  • Power Consumption
    18 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Gpixel
  • Sensor Model Number
    GL5016
  • Note
    Sensor Scanning Width: 81.92 mm

Physical Properties

  • Dimension
    115 x 115 x 53 mm
  • Weight
    800 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C
