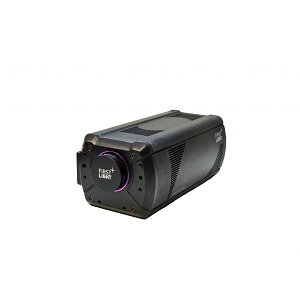

C-BLUE One UV

Scientific & Industrial Camera by First Light Imaging
10 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to First Light Imaging.

The C-BLUE One UV from First Light Imaging is a Scientific & Industrial Camera with Mega Pixels 8.1 MP, Frame Rate 121 to 170 fps, Wavelength Range 200 to 400 nm, Quantum Efficiency(QE) >70%. More details for C-BLUE One UV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C-BLUE One UV
  • Manufacturer
    First Light Imaging
  • Description
    Ultra Violet Extended & Global Shutter Scientific CMOS Camera

Applications

  • Application
    Contamination Detection, Fluochemistry, Mineralogy, Entomology, Electrophoresis, Gas Leak Detection, Non-destructive Inspection, Forensic Applications, Hydrogen Combustion Analysis, Ultra-Violet Astronomy, Hot Plasma Studies
  • Application Industry
    Scientific and Research

Connections & Interface

  • Data Interface
    CoaXPress, Gigabit Ethernet (GigE), GenICam

General Parameters

  • Camera Type
    SWIR Cameras
  • Mega Pixels
    8.1 MP
  • Resolution
    2856(H) x 2848(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    121 to 170 fps
  • Wavelength Range
    200 to 400 nm
  • Quantum Efficiency(QE)
    >70%
  • Spectral Range
    200 to 400 nm
  • Read Noise
    1.40 e-RMS
  • Detection Wavelength Range
    Ultraviolet, Visible
  • Cooling Method
    Liquid Cooling
  • Gain Range
    0 to 24 dB (Analog)
  • Pixels
    8.1 MP
  • Chrome
    Ultraviolet, Visible
  • Integration Time
    4.35 to 7.80 µs
  • Note
    Quantization: 8 to 16 bit, Maximum speed in binning: 392 to 516 fps

Physical Properties

  • Detector Pitch
    2.74 µm
  • Dimension
    154.3 x 76.2 x 64.1 mm (L x W x H)
  • Weight
    1.1 Kg
