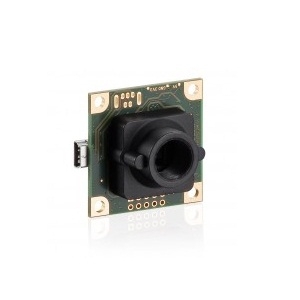

UI-1241LE-M-GL

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-1241LE-M-GL from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 1.31 MP, Frame Rate 24 to 25 fps, Bit Depth 8 Bit. More details for UI-1241LE-M-GL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-1241LE-M-GL
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    USB 2.0, CMOS, 25.8 fps, 1280 x 1024, 1.31 MPix, 1/1.8", e2v, Global Shutter, Global Start Shutter, Rolling Shutter

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.31 MP
  • Resolution
    1280(H) x 1024(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter, Rolling shutter
  • Frame Rate
    24 to 25 fps
  • Pixel Size(H x V)
    5.3 x 5.3 µm
  • Exposure Time :
    0.009 ms - 2000 ms
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit
  • Sensor Configurations
    Monochrome, RGB
  • Cooling Method
    Uncooled
  • Gain Range
    4x/-
  • I/O Signals
    10-pin plated-through holes
  • Operating Humidity
    20 to 80 %
  • Pixels
    SXGA, 1.31 MP
  • Vertical Clock Speed
    7 MHz - 35 MHz (Pixel Clock Range)
  • ADC Resolution
    10 Bit
  • Chrome
    Monochrome, B/W
  • Lens Mount
    S-Mount
  • Power Consumption
    0.3 to 0.7 W
  • Optical Diagonal
    8.69 mm
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    EV76C560ABT
  • Note
    Aspect ratio: 5:4

Physical Properties

  • Camera Head Size
    6.784 x 5.427 mm (Optical Size)
  • Dimension
    36 x 36 x 20.2 mm(H x W x L)
  • Weight
    16 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -20 to 80 Degree C
