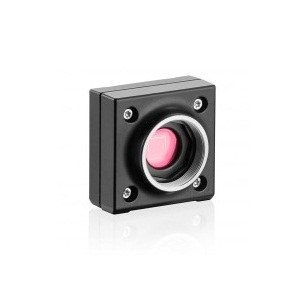

UI-1250ML-C-HQ

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
98 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-1250ML-C-HQ from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 1.92 MP, Frame Rate 17.6 to 17.3 fps, Bit Depth 8 Bit. More details for UI-1250ML-C-HQ can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-1250ML-C-HQ
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    USB 2.0, CMOS, 17.6 fps, 1600 x 1200, 1.92 MPix, 1/1.8", e2v, Global Shutter, Global Start Shutter, Rolling Shutter

Applications

  • Application
    3D Scanning, Machine Vision, Traffic And Transport (ITS), Laboratory Automation, Safety Technology, Gesture And Eye Tracking, Quality Assurance, Astronomy, Monitoring, Endless Web Inspection
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Security and Surveillance, Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.92 MP
  • Resolution
    1600(H) x 1200(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter, Rolling shutter
  • Frame Rate
    17.6 to 17.3 fps
  • Pixel Size(H x V)
    4.5 x 4.5 µm
  • Exposure Time :
    0.020 ms - 10000 ms
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit
  • Sensor Configurations
    Color, RGB
  • Cooling Method
    Uncooled
  • Gain Range
    4x/4x
  • I/O Signals
    8-pin Hirose connector (HR25-7TR-8PA(73))
  • Operating Humidity
    20 to 80 %
  • Pixels
    UXGA, 1.92 MP
  • Vertical Clock Speed
    10 MHz - 35 MHz (Pixel Clock Range)
  • ADC Resolution
    10 Bit
  • Chrome
    Color
  • Lens Mount
    CS-Mount, C-Mount
  • Power Consumption
    0.3 to 0.7 W
  • Optical Diagonal
    9 mm
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    EV76C570ACT
  • Note
    Aspect ratio: 4:3

Physical Properties

  • Camera Head Size
    7.200 x 5.400 mm (Optical Size)
  • Dimension
    44 x 44 x 28 mm(H x W x L)
  • Weight
    37 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -20 to 80 Degree C
