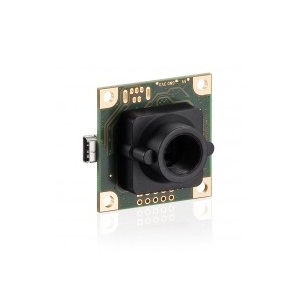

UI-1491LE-M-GL

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-1491LE-M-GL from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 10.55 MP, Frame Rate 3.2 to 3.2 fps, Bit Depth 8 Bit. More details for UI-1491LE-M-GL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-1491LE-M-GL
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    USB 2.0, CMOS, 3.2 fps, 3840 x 2748, 10.55 MPix, 1/2", ON Semiconductor, Rolling Shutter

Applications

  • Application
    Machine Vision, Laboratory Automation, Biotechnology And Life Sciences, Small Device Construction
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Medical and Healthcare

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    10.55 MP
  • Resolution
    3840(H) x 2748(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    3.2 to 3.2 fps
  • Pixel Size(H x V)
    1.67 x 1.67 µm
  • Exposure Time :
    0.340 ms - 14582 ms
  • Sensor Format
    1/2 Inches
  • Bit Depth
    8 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit
  • Sensor Configurations
    Monochrome, RGB
  • Gain Range
    8.5x/-
  • I/O Signals
    10-pin plated-through holes
  • Operating Humidity
    20 to 80 %
  • Pixel Binning
    2, 4
  • Pixels
    UHD Plus, 10.55 MP
  • Vertical Clock Speed
    5 MHz - 36 MHz (Pixel Clock Range)
  • ADC Resolution
    12 Bit
  • Chrome
    Monochrome, B/W
  • Lens Mount
    S-Mount
  • Power Consumption
    0.5 to 1.3 W
  • Optical Diagonal
    7.89 mm
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    MT9J003STM
  • Note
    Aspect ratio: 4:3

Physical Properties

  • Camera Head Size
    6.413 x 4.589 mm (Optical Size)
  • Dimension
    36 x 36 x 20.2 mm(H x W x L)
  • Weight
    16 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -20 to 80 Degree C
