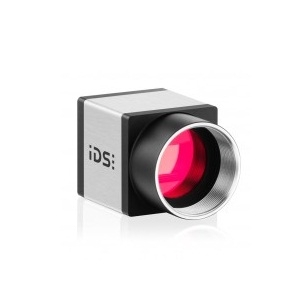

UI-3160CP-M-GL Rev.2.1

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-3160CP-M-GL Rev.2.1 from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 2.3 MP, Frame Rate 165 to 180 fps, Bit Depth 12 Bit. More details for UI-3160CP-M-GL Rev.2.1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-3160CP-M-GL Rev.2.1
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    USB 3.0, CMOS, 165 fps, 1920 x 1200, 2.3 MPix, 2/3", ON Semiconductor, Global Shutter

Applications

  • Application
    Machine Vision, Visualisation, Object Tracking, Laboratory Automation, Quality Assurance, Inspection Applications
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.3 MP
  • Resolution
    1920 x 1200
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    165 to 180 fps
  • Pixel Size(H x V)
    4.8 x 4.8 µm
  • Exposure Time :
    0.050 ms - 499 ms
  • Sensor Format
    2/3 Inches
  • Bit Depth
    12 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    12 Bit
  • Sensor Configurations
    Monochrome, RGB
  • Cooling Method
    Uncooled
  • Gain Range
    4x/4x
  • I/O Signals
    8-pin Hirose connector (HR25-7TR-8PA(73))
  • Operating Humidity
    20 to 80 %
  • Pixels
    2.30 MP
  • Vertical Clock Speed
    120 MHz - 480 MHz (Pixel Clock Range)
  • ADC Resolution
    10 Bit
  • Chrome
    Monochrome, B/W
  • Lens Mount
    C-Mount
  • Power Consumption
    1.3 to 3.7 W
  • Optical Diagonal
    10.87 mm
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    NOIP1SE2000A-QDI
  • Note
    Aspect ratio: 0.673611111111111

Physical Properties

  • Camera Head Size
    9.216 x 5.760 mm (Optical Size)
  • Dimension
    29 x 29 x 29 mm(H x W x L)
  • Weight
    52 g

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
