UI-3270CP-C-HQ Rev.2

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

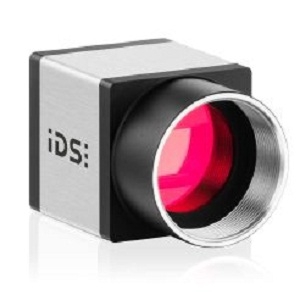

The UI-3270CP-C-HQ Rev.2 from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 3.17 MP, Frame Rate 57 fps, Bit Depth 12 Bit. More details for UI-3270CP-C-HQ Rev.2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-3270CP-C-HQ Rev.2
  • Manufacturer
    IDS Imaging Development Systems GmbH

Applications

  • Application
    Machine Vision, Traffic And Transport (ITS), Laboratory Automation, Metrology, Mechanical Engineering, Biotechnology And Life Sciences, Electronics Inspection, Pharma And Healthcare
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Scientific and Research, Medical and Healthcare

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    3.17 MP
  • Resolution
    2056(H) x 1542(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    57 fps
  • Pixel Size(H x V)
    3.45 x 3.45 µm
  • Exposure Time :
    0.018 to 999 ms
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    12 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    12 bit
  • Sensor Configurations
    Color, RGB
  • Gain Range
    24x/4x
  • Pixels
    3.17 MP
  • Vertical Clock Speed
    80 to 474 MHz
  • ADC Resolution
    12 bit
  • Chrome
    Color
  • Lens Mount
    C-Mount
  • Power Consumption
    1.5 to 3.3 W
  • Optical Diagonal
    8.86 mm
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX265LQR-C

Physical Properties

  • Dimension
    29 x 29 x 29 mm
  • Weight
    52 g

Temperature

  • Operating Temperature
    0 to 55 Degree C
  • Storage Temperature
    -20 to -60 Degree C
