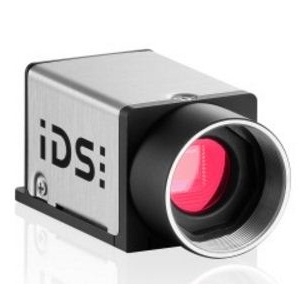

UI-5260CP-C-HQ Rev.2.2

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-5260CP-C-HQ Rev.2.2 from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 2.35 MP, Frame Rate 34 to 41 fps, Bit Depth 12 Bit. More details for UI-5260CP-C-HQ Rev.2.2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-5260CP-C-HQ Rev.2.2
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    GigE, CMOS, 34 fps, 1936 x 1216, 2.35 MPix, 1/1.2", Sony, Global Shutter

Applications

  • Application
    Machine Vision, Traffic And Transport (ITS), Visualisation, Laboratory Automation, Quality Assurance, Inspection Applications, Food & Beverage, Process Control, Pharma And Healthcare, Endless Web Inspection
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Security and Surveillance, Medical and Healthcare

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.35 MP
  • Resolution
    1936 x 1216
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    34 to 41 fps
  • Pixel Size(H x V)
    5.86 x 5.86 µm
  • Exposure Time :
    0.033 ms - 999 ms
  • Sensor Format
    1/1.2 Inches
  • Bit Depth
    12 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    12 bit
  • Sensor Configurations
    Color, RGB
  • Gain Range
    24x/4x
  • I/O Signals
    6-pin Hirose connector (HR10A-7R-6PB)
  • Operating Humidity
    20 to 80 %
  • Pixels
    2.35 MP
  • Vertical Clock Speed
    30 MHz - 118 MHz (Pixel Clock Range)
  • ADC Resolution
    12 Bit
  • Chrome
    Color
  • Lens Mount
    C-Mount
  • Power Supply
    12 to 24 V
  • Power Consumption
    1.9 to 3 W
  • Optical Diagonal
    13.4 mm
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX249LQJ-C
  • Note
    Aspect ratio: 16:10

Physical Properties

  • Camera Head Size
    11.340 x 7.130 mm (Optical Size)
  • Dimension
    29 x 29 x 40.5 mm(H x W x L)
  • Weight
    61 g

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
