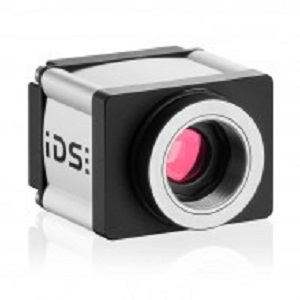

UI-5260FA-C-HQ Rev.1.2

Scientific & Industrial Camera by IDS Imaging Development Systems GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IDS Imaging Development Systems GmbH.

The UI-5260FA-C-HQ Rev.1.2 from IDS Imaging Development Systems GmbH is a Scientific & Industrial Camera with Mega Pixels 2 MP, Frame Rate 47 fps, Bit Depth 12 Bit. More details for UI-5260FA-C-HQ Rev.1.2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UI-5260FA-C-HQ Rev.1.2
  • Manufacturer
    IDS Imaging Development Systems GmbH
  • Description
    Ethernet industrial camera with Sony IMX249 2.35 megapixel CMOS sensor

Applications

  • Application
    Machine Vision, Traffic And Transport (ITS), Visualisation, Laboratory Automation, Quality Assurance, Inspection Applications, Food & Beverage, Process Control, Pharma And Healthcare, Endless Web Inspection
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Security and Surveillance, Medical and Healthcare

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2 MP
  • Resolution
    1936(H) x 1216(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    47 fps
  • Pixel Size(H x V)
    5.86 x 5.86 µm
  • Exposure Time :
    0.030 to 999 ms
  • Sensor Format
    1/1.2 Inches
  • Bit Depth
    12 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    12 Bit
  • Sensor Configurations
    Color, RGB
  • Operating Humidity
    0% to 100% (Non-Condensing)
  • Pixels
    2 MP
  • ADC Resolution
    12 Bit
  • Chrome
    Color
  • Lens Mount
    C-Mount
  • Power Supply
    12 V to 24 V, PoE
  • Power Consumption
    1.6 to 2.9 W
  • Optical Diagonal
    13.4 mm
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX249LQJ-C
  • Note
    Aspect ratio: 16:10, Optical Size: 11.340 x 7.130 mm, Gain (master/RGB: 24x/4x, Pixel clock range: 30 to 140 MHz

Physical Properties

  • Dimension
    41 x 53 x 42.7 mm
  • Weight
    171 g

Temperature

  • Operating Temperature
    0 to 55 Degree
  • Storage Temperature
    -20 to 60 Degree C
