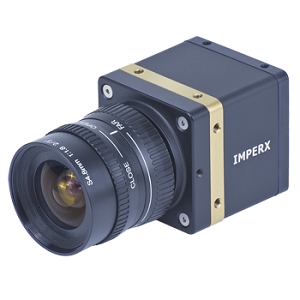

B1610

Scientific & Industrial Camera by IMPERX
103 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMPERX.

The B1610 from IMPERX is a Scientific & Industrial Camera with Mega Pixels 2 MP, Frame Rate 25 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit, 14 Bit (Mono), 8 Bit, 10 Bit, 12 Bit (Color), SNR 60 dB. More details for B1610 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    B1610
  • Manufacturer
    IMPERX

Applications

  • Application
    Automation, Inspection, Military, Aerospace, Medical, Scientific, Traffic, Transportation, Aerial Imaging
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Traffic Management and Intelligent Transportation Systems (ITS), Outdoor and Environmental Monitoring

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Power over Ethernet (PoE), Camera Link, CoaXPress, RS-232
  • Peripheral Communications
    RS-232

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2 MP
  • Resolution
    1620(H) x 1220(V)
  • Sensor Type
    CCD
  • Frame Rate
    25 fps
  • Pixel Size(H x V)
    4.40 x 4.40 µm
  • Active Image Area
    7.16(H) x 5.44(V) mm
  • Exposure Time :
    1us to 16 sec
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit, 14 Bit (Mono), 8 Bit, 10 Bit, 12 Bit (Color)
  • Color / Bit Depth
    8 Bit, 10 Bit, 12 Bit, 14 Bit (Mono), 8 Bit, 10 Bit, 12 Bit (Color)
  • SNR
    60 dB
  • Sensor Configurations
    Monochrome, Color, RGB, Bayer
  • Exposure Mode
    Manual, Auto, External
  • Gain Range
    0 to 36 dB
  • Operating Humidity
    10% to 90% non-condensing
  • Pixel Binning
    1x, 2x, 3x, 4x, 8x
  • trigger Input Signals
    2 IN
  • Pixels
    2 MP
  • Trigger Mode
    Free-run, standard, double, fast, asynchronous, frame accumulation
  • trigger Output Signals
    2 OUT
  • Vertical Clock Speed
    40 to 64 MHz
  • Compliances
    FCC, CE
  • Chrome
    Monochrome, Color
  • Integration Time
    Up to 16 seconds
  • Lens Mount
    C-Mount
  • Voltage(DC)
    10 to 15 V
  • Power Supply
    12 VDC
  • Power Consumption
    CLB: 2.6W, GEV: 3.2W, PoE: 5.2W
  • Optical Diagonal
    8.9 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation

Physical Properties

  • Dimension
    46 x 46 x 46.8 mm(CLB), 46 x 46 x 64.7 mm(GEV), 46 x 46 x 78.3 mm(PoE), 46 x 46 x 54.5 mm(CXP)(WxHxL)
  • Weight
    CLB: 158 g, GEV: 197 g, PoE: 300 g, CXP: 189 g

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -50 to 90 Degree C
