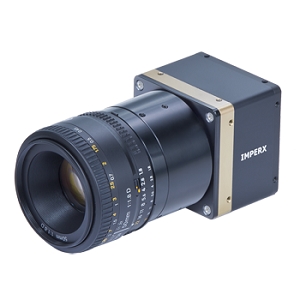

The B4020 from IMPERX is 11 Megapixel CCD Camera that has a resolution of 4008 (H) x 2672 (V) pixels. It delivers an overlocked frame rate of 6.4 fps and a standard clock frame rate of 4.8 fps. This camera has a pixel size of 9 µm x 9 µm and sensor area of 36.28 mm (H) x 24.19 mm (V). It uses KAI-11002 CCD sensor and has a diagonal size of 43.3 mm. This camera has a shutter speed of 1/100,000 s - 1/5 s and minimum signal-to-noise ratio of 60 dB.
The B4020 has 8/10/12-bit ADC (color) and 8/10/12/14-bit ADC (mono) with an analog gain of up to 36 dB. It features 7 ROI, 1x, 2x, 3x, 4x, and 8x binning. This camera has LUTs upgraded with Gamma 1 & 0.45, defective/hot pixel correction (static, dynamic), Flat Field Correction tables, black level, and vertical smear correction tables. It has Monochrome, Color, RGB, and Bayer sensor configurations. This camera has F-Mount (Default), C, M42, EOS, and Rodenstock lens mounts. It has an auto-programmable video iris and zoom focus controls.
The B4020 can be controlled via Camera Link® Base (PoCL), GigE Vision, PoE & CoaXPress interfaces and has external TTL via IN1/IN2, pulse generator, software & computer trigger inputs. It requires a DC supply voltage of 12 V and consumes 1.5 A of current. This camera is available in a compact package that measures 60 (W) mm x 60 (H) mm x 45.1 (L) mm (CLB), 60 mm (W) x 60 (H) mm x 63.2 (L) mm (GEV), 60 (W) mm x 60 (H) mm x 76.8 (L) mm (PoE), 60 (W) mm x 60 (H) mm x 52.8 (L) mm (CXP) and is ideal for imaging applications.
