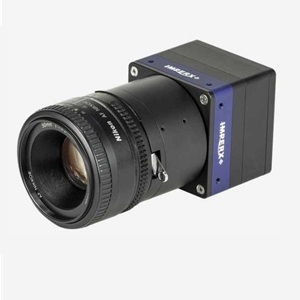

The CXP-C6440 from IMPERX is a 31 Megapixel CMOS Camera that has a resolution of 6464 (H) x 4860 (V) pixels. It has a global shutter in a APS-C optical format that deliver frame rates of 35.4 fps (8-bit), 30 fps (10-bit) & 25.1 fps (12-bit). This camera has a pixel size of 3.45 µm x 3.45 µm and sensor area of 22.3 mm (H) x 16.7 mm (V) with a diagonal of 27.9 mm. It has a dynamic range of 71 dB and shutter speed of 36 µs - 16 s. This camera has 8/10/12-bit ADC with an analog/digital gain of up to 48 dB.
The CXP-C6440 uses a Sony Pregius IMX429 CMOS image sensor that offers color/mono variances. It features 1 ROI, 1 x 2, 2 x 1 & 2 x 2 binning, and sub-sampling. This camera has 2 LUTs pre-programmed with Gamma 0.45, 2 LUTs pre-programmed with Negative LUT, Bad pixel correction (static), and 8 Flat Field Correction tables. It can be controlled via a 2-channel CXP-6 CoaXPress interface and is compliant with FCC Part 15 Class A, CE Marking, RoHS & UKCA standards.
The CXP-C6440 requires a DC supply voltage of 12 V and dissipates 5.3 W of power. It is available in a package that measures 60 mm (W) x 49.7 mm (L) x 60 mm (H) and is ideal for aerospace, satellites, surveillance, ball grid array, printed circuit board (PCB) inspection, motion analysis, broadcast television, telepresence, unmanned aerial vehicles (UAVs), machine vision, intelligent traffic systems (ITS), aerial imaging, open road tolling systems & situational awareness applications.
