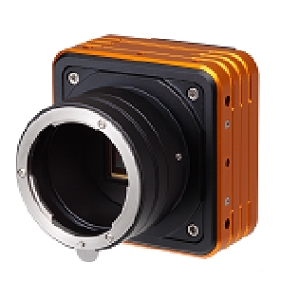

IC-x25S-CxP

Scientific & Industrial Camera by ISVI Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISVI Corp..

The IC-x25S-CxP from ISVI Corp. is a Scientific & Industrial Camera with Mega Pixels 25 MP, Frame Rate 72 fps, Wavelength Range 550 nm, Bit Depth 8 Bit, 10 Bit (Output Format), SNR 43.4dB. More details for IC-x25S-CxP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IC-x25S-CxP
  • Manufacturer
    ISVI Corp.
  • Description
    The all-new IC-x25S-CxP incorporates a high-resolution, high-speed, global shutter CMOS sensor

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    CoaXPress, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    25 MP
  • Resolution
    5120(H) x 5120(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    72 fps
  • Wavelength Range
    550 nm
  • Pixel Size(H x V)
    4.5µm(H) x 4.5µm(V)
  • Active Image Area
    23.04mm(H) x 23.04mm(V)
  • Full Well Capacity :
    22000 e-
  • Exposure Time :
    1 µsec to 10 sec
  • Dynamic Range
    56.2 dB
  • Bit Depth
    8 Bit, 10 Bit (Output Format)
  • Detector Sensitivity
    3.4 V/lux.s
  • SNR
    43.4dB
  • Sensor Configurations
    Monochrome, Bayer, RGGB
  • Exposure Mode
    Continuous, Trigger Timed, Trigger Width
  • Operating Humidity
    20% to 90% (Non-Condensing)
  • Pixels
    25 MP
  • ADC Resolution
    8 bit, 10 bit
  • Chrome
    Monochrome, Bayer
  • Lens Mount
    F-Mount, M42, M58, M72, LM(Leica M)
  • Voltage(DC)
    24 VDC
  • Power Consumption
    18 W
  • RoHs
    Yes
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    VITA25K

Physical Properties

  • Dimension
    80 x 80 x 36.55 mm(LxHxW)
  • Weight
    540 g

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 70 Degree C
