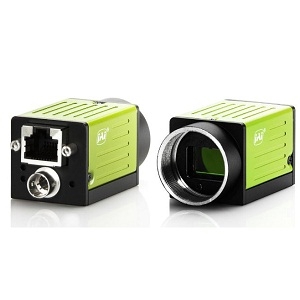

GO-2400C-PGE

Scientific & Industrial Camera by JAI
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JAI.

The GO-2400C-PGE from JAI is a Scientific & Industrial Camera with Mega Pixels 2.35 MP, Frame Rate 48 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit, SNR 60 dB. More details for GO-2400C-PGE can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GO-2400C-PGE
  • Manufacturer
    JAI
  • Description
    2.35-megapixel CMOS global shutter

Applications

  • Application
    Machine Vision, Automotive, Barcode recognition, Electronics inspection, Pharmaceuticals, Production quality control, Robotics
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Outdoor and Environmental Monitoring, Medical and Healthcare

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.35 MP
  • Resolution
    1936(H) x 1216(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    48 fps
  • Pixel Size(H x V)
    5.86 x 5.86 µm
  • Active Image Area
    11.3mm (H) x 7.13mm (V)
  • Sensor Format
    1/1.2 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • SNR
    60 dB
  • Sensor Configurations
    Color
  • Detection Wavelength Range
    Visible
  • Gain Range
    0 to 24 dB
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    1x2, 2x1, 2x2
  • Pixels
    2.35 MP, WUXGA+
  • Trigger Mode
    EPS, Trigger Width, Sequence
  • Vertical Clock Speed
    74.25 MHz (for pulse generator) (Pixel Clock)
  • Chrome
    Color, Visible
  • Lens Mount
    C-Mount
  • Power Supply
    12 to 24 VDC
  • Power Consumption
    2.64 W
  • Optical Diagonal
    41 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX 174

Physical Properties

  • Dimension
    29 x 29 x 41.5 mm
  • Weight
    46 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -25 to 60 Degree C
