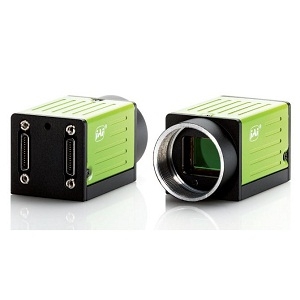

GO-5000M-PMCL

Scientific & Industrial Camera by JAI
36 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JAI.

The GO-5000M-PMCL from JAI is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 107 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit. More details for GO-5000M-PMCL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GO-5000M-PMCL
  • Manufacturer
    JAI
  • Description
    5-megapixel CMOS global shutter

Applications

  • Application
    Machine Vision, Automotive, Barcode recognition, Electronics inspection, Pharmaceuticals, Production quality control, Robotics
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Outdoor and Environmental Monitoring, Medical and Healthcare

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2560(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    107 fps
  • Pixel Size(H x V)
    5.0 x 5.0 µm
  • Active Image Area
    12.8mm (H) x 10.24mm (V)
  • Sensor Format
    1 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Near IR, Visible
  • Gain Range
    0 to 24 dB
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    1x2, 2x1, 1x4, 4x1, 2x2, 2x4, 4x2, 4x4 (mono only)
  • Pixels
    5 MP
  • Trigger Mode
    TTL, CL, Pulse Generator, Software, NAND0, NAND1, EPS, Trigger Width, Timed RCT (with ALC)
  • Vertical Clock Speed
    48 MHz (Pixel Clock)
  • Chrome
    Monochrome, Near-Infrared, Visible, B/W
  • Lens Mount
    C-Mount
  • Power Consumption
    3 W
  • Optical Diagonal
    16.39 mm
  • RoHs
    Yes

Physical Properties

  • Dimension
    29 x 29 x 41.5 mm
  • Weight
    46 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -25 to 60 Degree C
