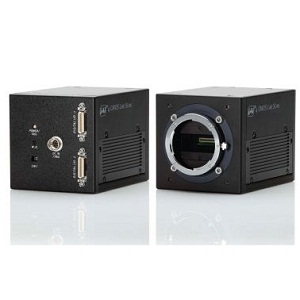

LQ-401CL

Scientific & Industrial Camera by JAI
36 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JAI.

The LQ-401CL from JAI is a Scientific & Industrial Camera with Bit Depth 8 Bit, 10 Bit (Video output), Line Rate 18 kHz, SNR 55 dB. More details for LQ-401CL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LQ-401CL
  • Manufacturer
    JAI
  • Description
    4 CMOS RGB/NIR Line Scan Camera

Applications

  • Application
    Food inspection, Semiconductors and LCD displays, Electronics, 2D print inspection, 3D print inspection, Web applications, Sports imaging, Fruit and vegetable inspection
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Entertainment and Media

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Resolution
    4096(H) x 4(V), 2048(H) x 4(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Pixel Size(H x V)
    7.0 x 7.0 µm
  • Active Image Area
    4 x 4096 mm (H) 4 x 2048 mm (H) with 2:1 binning
  • Bit Depth
    8 Bit, 10 Bit (Video output)
  • Line Rate
    18 kHz
  • Scan Rate
    Line Rate: 54.79µs (Full resolution/binning/internal trigger) 54.79µs~14.30ms, 11.9ns increments
  • Detector Sensitivity
    2800 Lux (7800K, gain=low, shutter=OFF, 100% video)
  • SNR
    55 dB
  • Sensor Configurations
    RGB
  • Detection Wavelength Range
    Near IR, Visible
  • Cooling Method
    Uncooled
  • Gain Range
    -4 to 8 dB
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    2:1
  • Trigger Mode
    No-shutter, shutter-select and pulse width control
  • Vertical Clock Speed
    84.00 MHz (Pixel Clock)
  • Chrome
    RGB, Near-Infrared, Visible
  • Lens Mount
    F-Mount, M-Mount
  • Power Supply
    12 to 24 VDC
  • Optical Diagonal
    28.67 mm
  • RoHs
    Yes
  • Note
    Resolution: 4 x 4096 pixels per line

Physical Properties

  • Dimension
    90 x 90 x 120 mm
  • Weight
    1050 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -25 to 60 Degree C
